punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine

  • punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine
  • punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine
  • punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine
  • punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine
Lugar de origem China
Marca DIXUN
Certificação CE & ISO 9001:2015
Número do modelo DX-63T
Quantidade de ordem mínima um conjunto
Detalhes da embalagem As peças sobressalentes e o gabinete de controle serão carregados em caixa de madeira. A máquina pri
Tempo de entrega 30 dias úteis
Habilidade da fonte 5 séries por mês
Detalhes do produto
Aplicativo fazer arame farpado Nome do produto Máquina automática para fabricar arame farpado de venda de fábrica
Tipo de navalha BTO CBT Motor da máquina perfuradora 5,5 kW
Peso de carga do desbobinador 2 toneladas máquina do perfurador 11 tiras de navalha
Motor do desbobinador 1,5 kW Espessura da placa de bobina galvanizada 0,4 mm ou 0,5 mm
Largura da placa de bobina galvanizada 154 mm Peso total 8 t
Destacar

63T punch pressure razor wire machine

,

BTO-22 razor wire making machine

,

11 strips barbed wire machine
Deixe um recado
Descrição de produto

Punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine





Introduction of Razor Wire Making Machine



Razor barbed wire machine mainly consists of punching machine and coil machine.

Punching machine cuts steel tapes in different razor shapes with different moulds.

Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.



Features of Razor Wire Making Machine



1. Automatic de-coiler holding max. 2tons steel sheet; its motor made of copper leads.

2. We adopts Chinese No. 1 Press machine, and step motor to feed steel sheet fast and smooth.

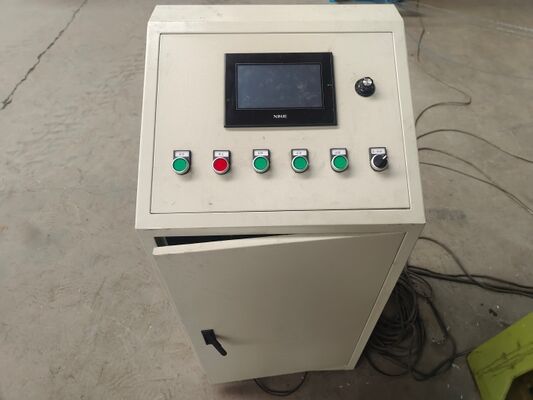

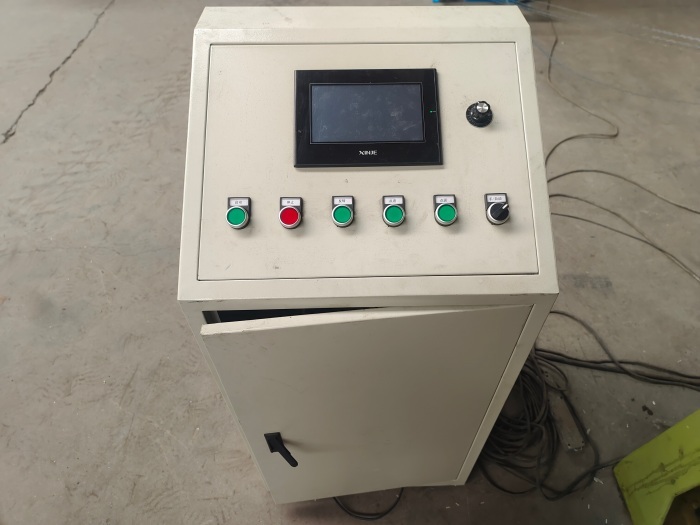

3. Control box with Text screen and PLC control and Delta inverter easily.

4. Punch machine was equipped with Foot/button switch control separately for easy operation.

5. Customized hardened alloy mold ensures little wastage of raw materials; hot-cast mold, one-year life.

6. Lubricant oil device is visible and central process, maintain machine easily, extend machine life.

7. Strong machine body made of cast steel with complex metal working.

8. Razor coiling machine adopts Grid counter to record loops quantity automatically.

9. Razor coiling machine adopts inverter to adjust working speed, more precise, long life.

10. Roller diameter for finished wire can be adjustable widely.

Razor Wire Machine Advantages

1. Automatically complete production line, operator friendly and higher speed.
2. Automatical decoiler holding max. 2tons steel sheet; its motor made of copper leads.
3. Different ton punch press for choice to save your cost.
4. Customized mold saving 20% raw materials.
4. Slitting frame and recoiler to wind up razor tapes rolls tightly.
5. Electro-magnetic motor in coiling machine for smooth speed adjustable.
6. Multifunctional squeezing wheels for strong finished razor wire.

Technical Parameters of Razor Wire Making Machine



Name Motor Rotate speed Control mode Dimension
Punch machine 5.5kw 75-130 r/min frequency  conversion 1800*1600*2550mm
Decoiler  1.5kw 80 r/min automatic 1000*900*1000mm
Collect razor strip machine 3.0kw 0-100 r/min frequency conversion 1000*900*1000mm
Feeding machine 1.5kw   frequency conversion 700*300*300
Coiling machine 3.0kw 0-260 r/min frequency conversion 1000*550*1000mm



Applications of Razor Wire Making Machine



Razor barbed wire is extensively used for security isolation, communication stations, power distribution stations, border prisons, landfill, community protection, schools, factories, farms, etc.

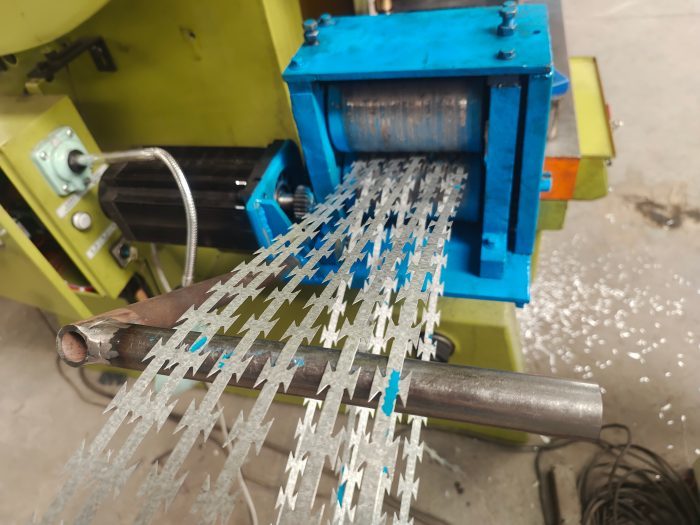

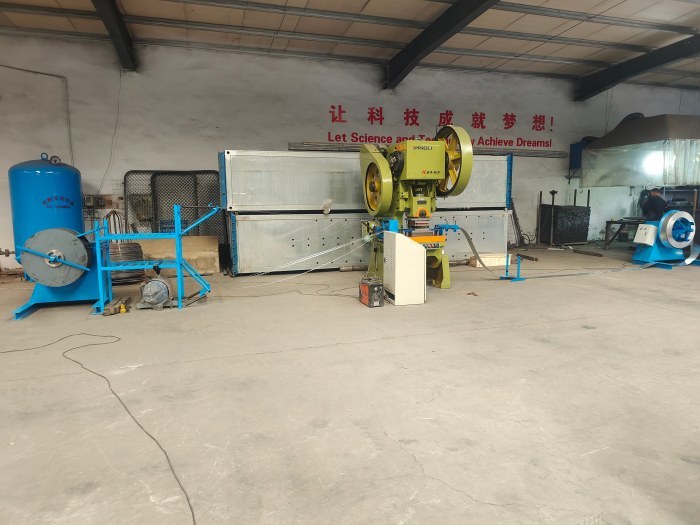

Photos of Razor Wire Making Machine



punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine 0

punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine 1

punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine 2

punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine 3
